What Is A Good Voltage for A Starter Battery?

1. Introduction

Have you ever tried to start your car, only to be met with a frustrating click instead of the engine roaring to life? The culprit might be your starter battery’s voltage. A healthy starter batter is key to your car's ability to start and run smoothly, but how do you know if it's working properly?

2. Understanding Starter Batteries

2.1 What is a Starter Battery?

A starter battery is a 12-volt battery that powers the electrical systems in your car when the engine is off and provides the energy needed to start the engine. When you turn the key or press the ignition button, the battery supplies power to the starter motor, which kicks the engine into action. Once the engine is running, the alternator takes over to maintain the charge and power the electrical components of the car.

2.2 Components of a Starter Battery

Most starter batteries are made from lead-acid, AGM (Absorbent Glass Mat), or EFB (Enhanced Flooded Battery) technologies. The battery consists of:

● Lead plates: The primary components that store energy.

● Electrolyte solution: A mixture of sulfuric acid and water that helps facilitate the electrochemical reaction.

● Battery terminals: The points of contact where the battery connects to the car’s electrical system.

Understanding these components helps you better grasp why battery voltage is crucial for the effective functioning of your vehicle.

Tip: Always choose the right type of battery for your car model to ensure optimal performance. AGM or EFB batteries are better suited for modern vehicles with advanced electrical systems.

2.3 Types of Starter Batteries

There are a few types of starter batteries available:

● Lead-Acid Batteries: The most common type, typically used in older vehicles. They are affordable but have a shorter lifespan.

● AGM Batteries: These are more durable and can handle more charge cycles. They are ideal for vehicles with advanced systems.

● EFB Batteries: Designed for newer cars with stop-start technology, EFB batteries provide better longevity and performance than standard lead-acid batteries.

Each type has its advantages, so it's important to choose the right one based on your vehicle’s requirements.

3. What is a Good Voltage for a Starter Battery?

3.1 Nominal Voltage vs. Actual Voltage

The nominal voltage of a starter battery is 12V, but the actual voltage can fluctuate. For instance:

● Resting Voltage: When the engine is off, a fully charged battery should measure around 12.6 volts.

● Running Voltage: Once the engine starts and the alternator kicks in, the voltage rises to between 13.5 and 14.7 volts to power electrical components and recharge the battery.

Tip: If your battery reads lower than 12V when the engine is off, it may be an indication that the battery is undercharged or nearing the end of its life.

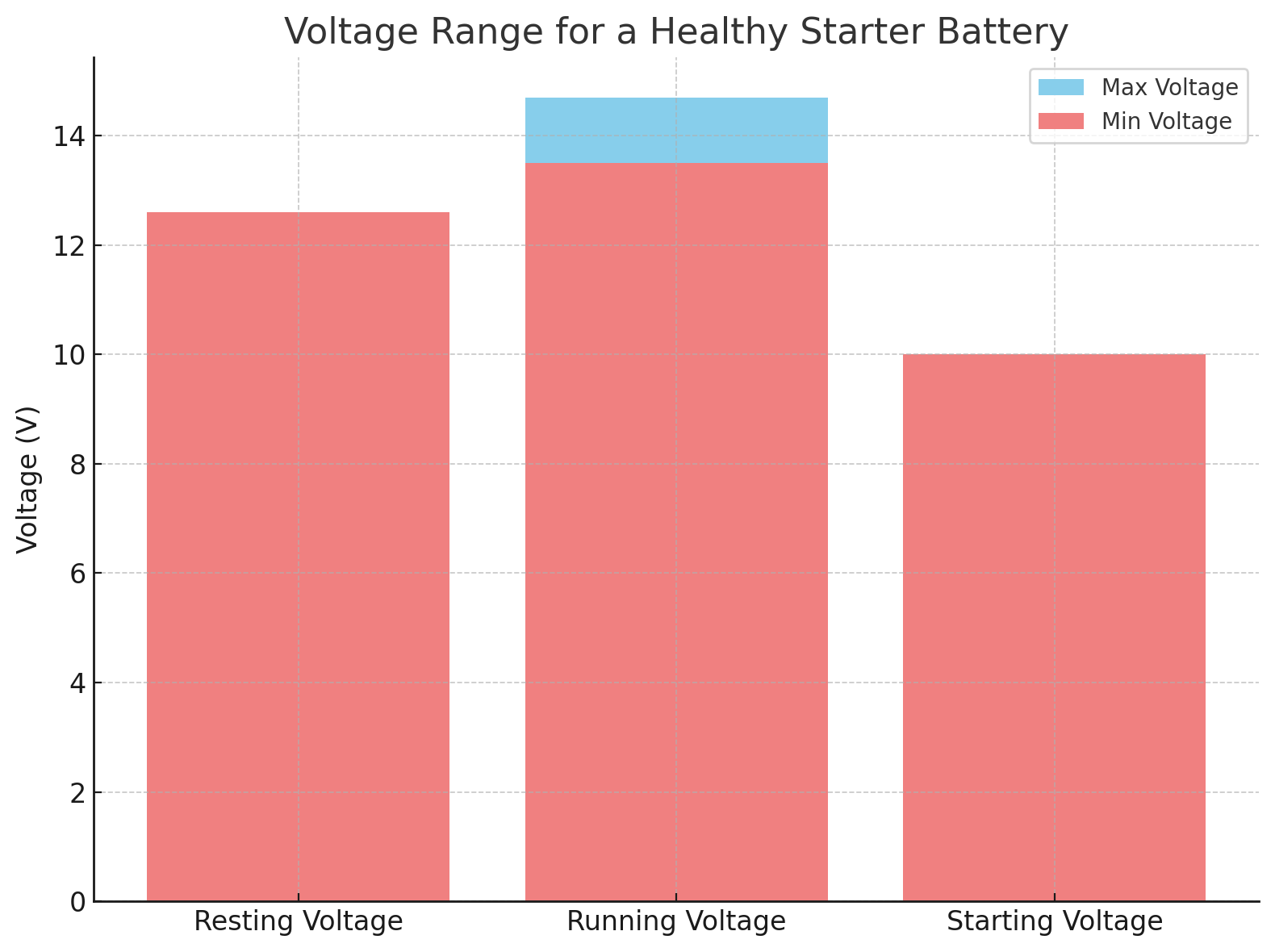

3.2 Voltage Range for a Healthy Starter Battery

For a healthy starter battery, you should look for the following voltage ranges:

● Resting Voltage (Engine Off): 12.6V indicates a fully charged, healthy battery.

● Running Voltage (Engine Running): Between 13.5V and 14.7V, powered by the alternator.

● Starting Voltage: When starting the car, expect a temporary voltage dip to about 10V. A healthy battery will recover quickly to normal levels.

Tip: Regularly monitor your battery voltage. If it dips below 12.4V during a rest, consider charging or replacing the battery soon.

3.3 Voltage During Starting

When starting the engine, voltage temporarily drops as the starter motor draws a large amount of energy. A healthy battery typically drops to around 10V during startup. This is normal, but if it falls below 10V, the battery may not have enough charge to start the engine and could require attention.

4. Low Voltage: Causes and Consequences

4.1 Causes of Low Voltage in Starter Batteries

Low voltage in a starter battery can be caused by several factors:

● Aging Battery: Over time, the battery’s capacity to hold charge diminishes, leading to lower voltage.

● Corrosion: Corroded battery terminals can disrupt the battery’s connection to the car's electrical system, causing power loss.

● Alternator Issues: A malfunctioning alternator can fail to charge the battery properly, leading to low voltage.

Tip: Regularly clean the battery terminals and inspect the alternator to ensure they are functioning properly.

4.2 Consequences of Low Voltage

If the battery voltage drops too low:

● Difficult Starts: Your car may have trouble starting or fail to start altogether.

● Electrical System Damage: Prolonged low voltage can damage sensitive electronic components in your car, including the starter motor.

● Increased Wear on the Battery: The battery may wear out faster if it is repeatedly discharged below its optimal voltage.

4.3 When to Replace the Battery

If your battery's voltage consistently reads below 11.8V during a test, it's time to consider a replacement. At voltages below this level, the battery may no longer have the power necessary to start the car reliably.

5. High Voltage: Risks and Solutions

5.1 Causes of High Voltage in Starter Batteries

High voltage issues in a starter battery are often caused by:

● Overcharging: This can occur if the alternator or voltage regulator fails, leading to the battery being charged too much.

● Faulty Voltage Regulator: A faulty regulator can allow too much power to flow into the battery, causing high voltage levels.

5.2 Risks of Overcharging and High Voltage

Overcharging a battery can lead to:

● Battery Damage: The excess voltage can cause the battery to overheat, leading to internal damage.

● Damage to Electrical Components: High voltage can fry sensitive components such as the alternator or onboard electronics.

Tip: If your car's voltage exceeds 14.8V, have the alternator and voltage regulator checked by a professional.

5.3 How to Address High Voltage Issues

If you notice that your car's voltage exceeds normal levels, it’s important to:

● Check the Alternator: A faulty alternator should be replaced or repaired.

● Repair the Voltage Regulator: Ensure the regulator is functioning to prevent overcharging.

6. How to Test Your Starter Battery Voltage

6.1 Using a Multimeter

Testing your starter battery voltage is easy with a multimeter:

1.  Set your multimeter to DC voltage.

2.  Place the red probe on the positive terminal and the black probe on the negative terminal.

3.  Check the reading—anything below 12.4V indicates the battery may need charging or replacement.

6.2 When to Test Your Battery

To get an accurate reading:

● Test the battery after the vehicle has been off for 15-30 minutes. This ensures you’re reading the resting voltage.

6.3 Interpreting the Results

● 12.6V or higher: The battery is in good condition.

● 12.4V - 12.5V: The battery is adequately charged.

● Below 12.4V: The battery is undercharged and may need attention.

● Below 11.8V: The battery is low and may not start the vehicle reliably.

7. Maintaining Your Starter Battery Voltage

7.1 Regular Driving and Battery Health

Your battery stays healthy with regular use. When you drive, the alternator keeps the battery charged. Prolonged periods of inactivity can cause the battery to discharge, leading to low voltage.

7.2 Avoiding Extreme Temperatures

Extreme cold or heat can negatively affect battery performance. Cold weather can reduce the battery's ability to start the vehicle, while heat can cause the battery fluid to evaporate, leading to damage.

Tip: Try to keep your car in a garage or shaded area to protect the battery from extreme temperatures.

7.3 Corrosion Prevention

To extend the life of your battery:

● Clean the terminals regularly to remove any corrosion.

● Apply petroleum jelly or a similar protectant to the terminals to prevent buildup.

8. Conclusion

Maintaining the correct voltage for your starter battery is essential for reliable vehicle performance. A resting voltage of 12.6V, a running voltage between 13.5V and 14.7V, and a temporary drop to around 10V during startup are ideal ranges. Regularly testing your battery, keeping it clean, and ensuring the alternator and regulator are functioning properly will help extend your battery's lifespan. If your battery shows consistently low voltage, replacing it before it fails will save you from costly repairs. For reliable battery solutions, JUJIANG POWER offers high-performance options to keep your car running smoothly.

FAQ

Q: What is the ideal voltage for a starter battery when the engine is off?

A: A healthy starter battery should have a resting voltage of around 12.6V when the engine is off.

Q: How can I tell if my starter battery voltage is low?

A: If the voltage reads below 12.4V when the engine is off, it may indicate an undercharged or aging starter battery.

Q: What causes low voltage in a starter battery?

A: Low voltage can result from an aging battery, corrosion on terminals, or issues with the alternator not charging the battery properly.

Q: What is the voltage range for a healthy starter battery while the engine is running?

A: When the engine is running, the voltage should range between 13.5V and 14.7V, powered by the alternator.

Q: How do I test my starter battery voltage?

A: Use a multimeter to measure the voltage by placing the red probe on the positive terminal and the black probe on the negative terminal. A reading below 12.4V indicates the need for charging or replacement.

Q: Can a starter battery have too high of a voltage?

A: Yes, overcharging can cause high voltage, leading to damage in the starter battery and electrical components like the alternator.
