Modern vehicle electrical architectures—particularly those utilizing regenerative braking and high-demand accessories—rely on exact battery specifications. Selecting the correct AGM battery size is a strict technical requirement, not a mere recommendation. When you install a unit with incorrect physical dimensions, you guarantee unsecured fitment. This oversight leads directly to high-vibration damage that destroys internal lead plates. Furthermore, mismatched capacity (Ah) disrupts the vehicle’s Battery Management System (BMS). A confused BMS triggers premature battery failure, places severe strain on the alternator, and causes start-stop system malfunctions. This guide breaks down the DIN/EN L-series (L2 through L5) sizing standards. We provide a practical framework to match physical dimensions, electrical capacity, and manufacturer specifications. You can use this data for reliable replacement or large-scale fleet procurement without second-guessing compatibility.
Standardized Footprints: The L-series (DIN/EN) standardizes width (175mm) and height (190mm), with capacity scaling directly alongside the length of the battery casing (from 242mm in L2 to 353mm in L5).
The Strict Replacement Rule: An AGM battery must always be replaced by another AGM battery; downgrading to a standard flooded lead-acid (SLA) battery will result in rapid failure in start-stop applications.
BMS Dependency: Upgrading or downgrading an AGM start stop battery size requires BMS recalibration; failing to register the new capacity will result in incorrect charging profiles and reduced lifespan.
Direct Cross-Referencing: L-series sizes directly correlate with H-series designations (e.g., L2 = H5, L3 = H6), simplifying cross-reference across European and North American BCI standards.
Sourcing Criteria: Evaluating an AGM battery manufacturer requires looking beyond basic Ah ratings to assess plate compression, lead purity, and cycle-life testing data.
Global supply chains often create confusion during procurement and replacement. Different regions utilize varying standards to classify automotive batteries. North America relies heavily on the BCI (Battery Council International) system. Europe utilizes the DIN/EN standard. Understanding how these systems interact prevents costly purchasing errors and ensures seamless installation on the shop floor.
The European DIN/EN standard categorizes automotive batteries using an L1 through L6 designation. This system standardizes the physical case size and establishes a baseline electrical capacity. Automakers favor this system because it simplifies vehicle manufacturing. Engineers can design a single battery tray width for an entire vehicle lineup. Across the L-series, the width remains a constant 175mm. The height remains a constant 190mm. The length of the casing dictates the internal volume. More volume allows for more lead plates, which directly increases the Ampere-hour (Ah) capacity. A base model sedan might use a short L2 battery, while the diesel variant of the exact same car uses a longer L5 battery in the same tray.
The Battery Council International (BCI) Group Size system goes beyond simple physical dimensions. It standardizes terminal locations, polarity configurations, and baseline performance characteristics. A specific BCI group size guarantees the battery will physically fit the tray, the cables will reach the correct terminals without stretching, and the hold-down clamps will secure the casing properly. Mechanics rely on BCI group sizes to ensure they do not install a battery with reversed polarity, which would instantly blow main vehicle fuses.
Mapping L-series designations to H-series and BCI group sizes simplifies cross-border procurement. The structural nodes align perfectly across these naming conventions. Use the following matrix to cross-reference standard automotive sizes when ordering replacement units.
DIN/EN L-Series | H-Series Equivalent | BCI Group Size | Approximate Length (mm) | Typical Capacity (Ah) |
|---|---|---|---|---|
L2 | H5 | Group 47 | 242mm | 60Ah |
L3 | H6 | Group 48 | 278mm | 70Ah |
L4 | H7 | Group 94R | 315mm | 80Ah |
L5 | H8 | Group 49 | 353mm | 92Ah - 95Ah |
You must distinguish between automotive L-series/BCI group sizes and marine/RV deep-cycle group sizes. Marine sizes include Group 24, 27, 31, 4D, and 8D. These batteries feature different terminal types, such as threaded studs designed for wing nuts. They also utilize thicker solid lead plates optimized for prolonged deep discharges rather than short, high-amp cranking bursts. Mixing automotive and marine applications leads to rapid battery degradation. Installing a Group 31 marine battery in a commercial van will result in poor cold-weather starting performance because the internal resistance is too high for rapid starter motor engagement.
Physical standard compliance matters immensely for OEM battery trays. Vehicle manufacturers engineer tight tolerances under the hood. A battery must match the exact dimensions to engage the base hold-down clamps securely. The most common European hold-down standard is the B13. The B13 specification requires a 10.5mm high ledge running along the bottom long side of the battery casing. The vehicle's metal cleat clamps down onto this ledge. If you purchase a battery without the correct B13 ledge, the battery will bounce freely in the tray, leading to cracked casings and acid leaks.
Each step up in the L-series hierarchy provides increased electrical capacity and cold cranking power. Selecting the correct unit requires matching the physical footprint to the vehicle's specific energy demands. You cannot guess the size; you must measure the tray or consult the factory specifications.
The AGM60 L2 battery represents the entry point for modern start-stop applications. It provides a compact power solution for vehicles with tight engine bays, such as compact hatchbacks and smaller crossover SUVs.
Physical Dimensions: The standard L2 casing measures approximately 242mm in length, 175mm in width, and 190mm in height.
Electrical Baseline: It delivers a nominal capacity of 60Ah. The typical Cold Cranking Amps (CCA) range falls between 600 and 680.
Target Application: This size perfectly suits compact vehicles and entry-level start-stop systems. Many large luxury SUVs also utilize the L2 as a secondary auxiliary battery. In these dual-battery systems, the L2 powers specific electronic modules like the electronic power steering or brake-by-wire systems while the primary battery handles engine cranking.
Installation Note: Due to its shorter length, installing an L2 in a larger tray requires a spacer block to prevent horizontal movement.
The AGM70 L3 battery serves as the most common standard for modern passenger vehicles. It balances physical size with robust electrical reserves, making it the default choice for millions of vehicles globally.
Physical Dimensions: The L3 casing extends the length to approximately 278mm, maintaining the standard 175mm width and 190mm height.
Electrical Baseline: It offers a nominal capacity of 70Ah. CCA ratings typically range from 720 to 760.
Target Application: Mid-size sedans, standard half-ton pickup trucks, and mid-size SUVs rely heavily on this size. It acts as the primary power source for mainstream start-stop applications where the engine shuts off at traffic lights.
Installation Note: The L3 is heavy enough that technicians should use a battery carrying strap. Dropping an L3 into a recessed cowl tray without a strap often results in pinched fingers or damaged surrounding plastic cowls.

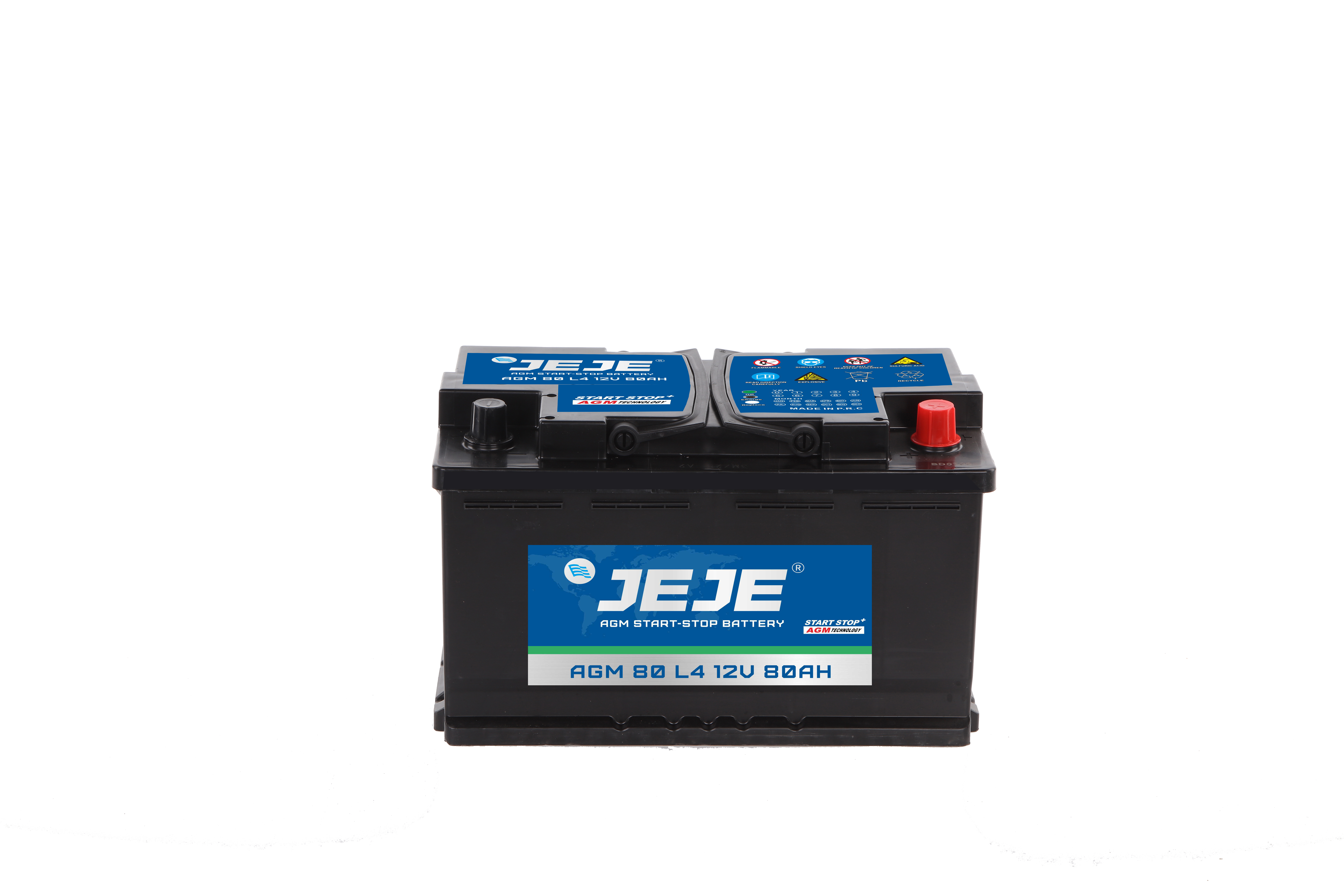

The AGM80 L4 battery steps up the power delivery for vehicles equipped with extensive electronic suites, heated seats, and larger displacement engines.
Physical Dimensions: The L4 casing measures approximately 315mm in length, 175mm in width, and 190mm in height.
Electrical Baseline: It provides a substantial 80Ah capacity. The CCA output ranges from 800 to 850.
Target Application: Luxury vehicles, light commercial vans, and vehicles with heavy electronic accessory loads require the L4. It handles the parasitic draw of advanced infotainment systems, air suspension compressors, and driver-assistance radar modules effortlessly.
Installation Note: The "R" in Group 94R stands for "Reverse". This means the positive terminal sits on the right side when facing the battery. Always verify cable routing before dropping an L4 into the tray, as forcing cables to cross over the battery creates a severe fire hazard.
The AGM92 L5 battery sits at the top of the standard passenger vehicle sizing chart. It delivers maximum reserve capacity and unyielding cranking power for the most demanding automotive environments.
Physical Dimensions: The L5 casing requires significant tray space, measuring approximately 353mm in length, 175mm in width, and 190mm in height.
Electrical Baseline: It boasts a massive capacity ranging from 92Ah to 95Ah. CCA ratings typically hit 850 to 900.
Target Application: High-performance European vehicles, large diesel engines, and heavy-duty fleet applications demand the L5. Diesel engines require massive amperage to power glow plugs and grid heaters before the starter motor even engages. The L5 provides this power without dropping voltage below critical thresholds.
Installation Note: Weighing upwards of 60 pounds, the L5 requires careful handling. Many European vehicles mount the L5 under the passenger seat or in the rear trunk well. Ensure the vent tube is properly connected during installation to route natural off-gassing outside the passenger cabin.
Selecting a replacement battery requires rigorous technical evaluation. Relying solely on basic voltage metrics leads to catastrophic system failures. You must evaluate the specific electrical load of the vehicle and match the battery's internal chemistry and capacity accordingly. A battery is not just a box of electricity; it is a chemical storage device that must align with the vehicle's alternator output.
Matching a 12V rating proves entirely insufficient for modern vehicles. A small motorcycle battery and a massive diesel truck battery both output 12 volts. Buyers must match both capacity (Ah) and physical dimensions to ensure system compatibility. The vehicle's alternator expects a specific Ah rating to govern its charging algorithm. If you install a 60Ah battery in a vehicle programmed for a 95Ah battery, the alternator will push too much current, boiling the electrolyte and destroying the battery within weeks.
Absorbent glass mat technology handles deep cycling exceptionally well. In a AGM start stop battery, fiberglass mats tightly compress the lead plates. This physical compression prevents the active lead material from shedding off the grid during repeated discharge cycles. Standard flooded lead-acid (SLA) batteries lack this compression. When an SLA battery discharges, the lead plates expand and contract. Without the glass mat holding everything together, the lead flakes off and falls to the bottom of the casing, eventually shorting out the cell. Installing an SLA battery in a start-stop vehicle results in rapid internal degradation.
Performance Metric | Standard Flooded (SLA) | Absorbent Glass Mat (AGM) |
|---|---|---|
Start-Stop Cycle Life | Low (Fails quickly under constant cycling) | High (Designed for 3x more engine starts) |
Vibration Resistance | Poor (Plates hang freely in liquid acid) | Excellent (Plates compressed by glass mats) |
Charge Acceptance | Slow (Limits regenerative braking efficiency) | Fast (Rapidly absorbs alternator current) |
Spill Risk | High (Liquid acid can leak if tilted) | Zero (Acid is fully absorbed in mats) |
Ampere-hour (Ah) measures the total energy a battery stores. Reserve Capacity (RC) measures how many minutes the battery can sustain a 25-amp load before dropping below 10.5 volts. You must ensure adequate reserve power for parasitic draws. Modern vehicles continuously draw power for security systems, keyless entry modules, and memory settings during engine-off phases. For example, a vehicle with a constant 50-milliamp (0.05A) parasitic draw will consume 1.2Ah per day just sitting in a driveway. Over a two-week airport parking stay, that equals 16.8Ah. Higher Ah ratings provide a larger buffer against these constant drains, ensuring the vehicle still starts upon your return.
Cold Cranking Amps dictate the battery's ability to start an engine in freezing temperatures. Matching the OEM CCA requirement remains critical for cold-weather reliability. However, over-speccing CCA at the expense of Ah represents a flawed strategy for start-stop vehicles. To achieve artificially high CCA ratings, some manufacturers use thinner, more numerous lead plates to increase surface area. These thin plates degrade much faster under deep-cycle conditions. Start-stop systems require thicker, robust plates to survive constant cycling, making Ah a more critical metric than excessive CCA.
Modifying the factory battery size introduces significant technical risks. While upgrading capacity seems beneficial for aftermarket electronics, it requires careful physical measurement and software recalibration. Downgrading capacity almost always results in system failure and stranded drivers.
Always utilize vehicle lookup tools and check the owner's manual first. Establish the factory-recommended group size before attempting any modifications. The OEM baseline dictates the minimum acceptable Ah and CCA ratings. It also defines the exact physical footprint the vehicle engineers designed the battery tray to accommodate. Never guess the size based on visual inspection alone.
Fitting a larger battery requires physical space. Moving from an L3 to an L4 increases the casing length by 37mm. You must measure the tray length accurately. Check for removable spacer blocks. Many European vehicles feature adjustable trays with plastic blocks that accommodate multiple L-series sizes. Removing a block allows a larger battery to fit securely. Never force a battery into a tray that is too small. The resulting pressure will crack the plastic casing, leaking highly corrosive sulfuric acid onto the vehicle's frame rails and wiring harnesses.
Changing battery capacity requires reprogramming the vehicle's computer using an advanced OBD2 diagnostic scanner. The Battery Management System (BMS) monitors battery age, internal resistance, and temperature. It adjusts the alternator's charging voltage accordingly. An older, degraded battery requires higher voltage to push a charge into the plates. If you install a new battery without registering it, the BMS will continue applying high voltage, overcharging the new unit and boiling off the internal electrolyte. Furthermore, if you upgrade the Ah capacity (e.g., moving from 70Ah to 80Ah), the BMS must know the new target. Failing to register a larger battery results in chronic undercharging, leading to rapid sulfation and premature failure.
Upgrading to an L5 battery provides massive reserve capacity for aftermarket winches, high-output audio systems, or auxiliary lighting. However, this upgrade introduces a significant weight penalty. An L5 battery weighs substantially more than an L3. You must evaluate whether the gain in electrical capacity justifies the added front-end weight and the necessity of BMS recalibration. For most standard passenger vehicles, sticking to the OEM size provides the best balance of performance and longevity.
Procuring batteries for commercial fleets requires stringent supplier evaluation. You must look beyond basic marketing claims and analyze the underlying manufacturing processes. Quality control at the factory level dictates field reliability. A cheap battery costs more in the long run when you factor in tow trucks and vehicle downtime.
Fleet managers must evaluate suppliers based on operational consistency. Look for ISO/TS 16949 certifications. This automotive quality management standard ensures rigorous defect prevention. Automated assembly lines guarantee uniform plate compression and precise electrolyte filling. Manual assembly introduces unacceptable variables. If a factory worker manually inserts the glass mats, the compression ratio will vary from cell to cell. This inconsistency leads to uneven wear and premature failure across a batch of batteries.
Assess a potential AGM battery manufacturer by analyzing their raw materials. Virgin lead significantly outperforms recycled lead, offering lower internal resistance and faster charge acceptance. Investigate the grid casting technology. Stamped grids provide superior corrosion resistance compared to older expanded metal grid designs. Stamped grids feature a continuous, unbroken frame that channels current efficiently to the terminal. Finally, verify the glass mat compression ratios. High compression prevents active material shedding, which determines the actual cycle life under heavy start-stop usage.
Analyze the warranty terms carefully. Commercial applications often carry different warranty periods than consumer applications due to the higher cycle counts. Check the manufacturer's historical defect rates. Ensure strict compliance with OEM specifications. For European automotive applications, the battery must meet VDA (Verband der Automobilindustrie) standards. Compliance guarantees the battery will perform identically to the original factory unit, ensuring the vehicle's electrical architecture remains stable.
Selecting the correct AGM battery size remains a rigid, technically demanding process. Physical tray limits, precise load calculations, and strict OEM electrical requirements dictate the final choice. Ignoring these parameters leads to rapid component failure and compromised vehicle operation. Match the DIN/EN L-size first to guarantee physical fitment, then verify the Ah and CCA ratings align perfectly with the vehicle's original specifications.
Execute the following steps to ensure a successful battery replacement:
Measure the existing battery casing length from edge to edge to confirm the current L-series size.
Locate the OEM part number, Ah rating, and BCI/DIN group size printed directly on the current battery label.
Verify the vehicle's required terminal orientation and base hold-down clamp style before purchasing a replacement.
Use an OBD2 diagnostic scanner to register the new battery with the vehicle's Battery Management System immediately after installation.
A: Yes, provided your vehicle battery tray has sufficient physical space. You must measure the tray length to accommodate the 315mm L4 casing. Additionally, upgrading capacity requires strict BMS reprogramming. The vehicle computer must register the higher Ah rating to adjust the charging profile correctly.
A: There is no physical or electrical difference. H6 and L3 are simply different regional naming conventions for the exact same battery size. Both designations refer to a casing measuring approximately 278mm in length with a capacity of around 70Ah.
A: Yes, it is a strict technical necessity. Start-stop systems demand high-cycle capabilities to power electronics while the engine is off. Replacing an AGM unit with a standard flooded lead-acid battery will cause rapid internal degradation and premature failure.
A: Start by checking your owner's manual or utilizing an OEM lookup tool. You can also physically measure the battery length and read the DIN/BCI code printed directly on the existing battery label to ensure an exact match.
A: No. Manufacturers differ significantly in internal construction quality. Variations in grid design, lead purity, and glass mat plate compression directly affect the battery's longevity, cycle life, and overall performance in demanding automotive environments.
